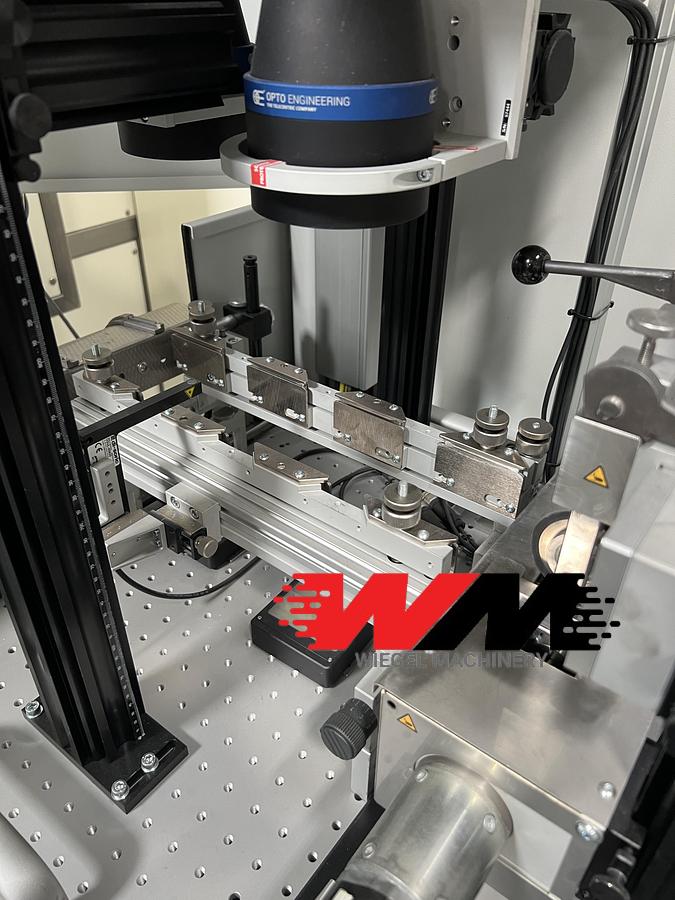

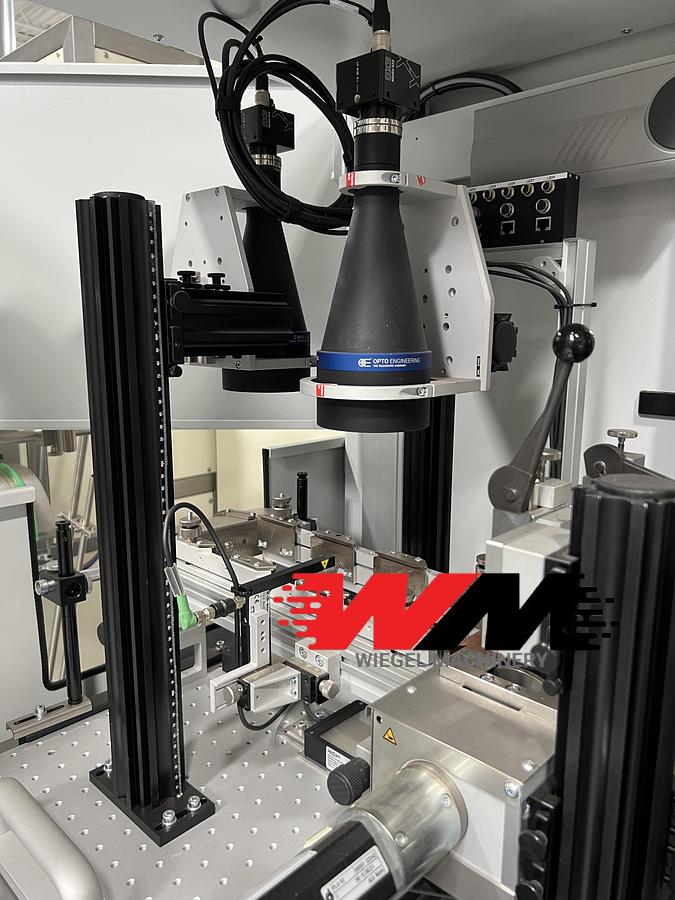

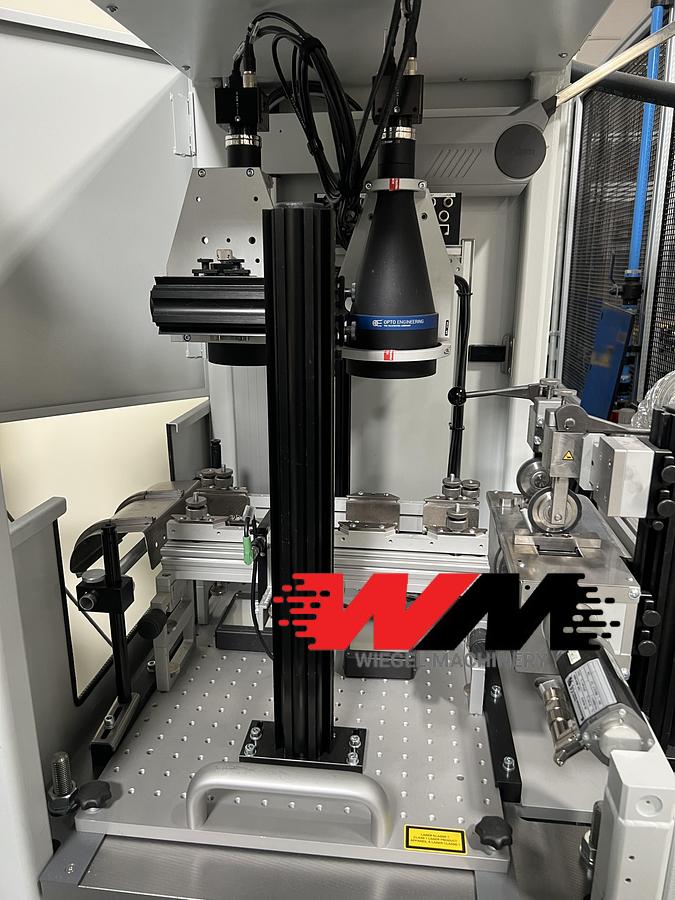

21' Jenoptik/Otto Vision PSS-40/S V2 In-line Vision System

PSS-40 Inline Inspection System

100% Real-Time Quality Control for Punched Metal Strips

The PSS-40 is a state-of-the-art inline inspection system designed to ensure the highest quality standards in the production of punched metal strips. By combining high-speed, high-resolution imaging technology with intelligent defect detection software, the PSS-40 delivers 100% inspection of geometry, surface defects, and contours — directly within the production line.

Core Capabilities

• Real-Time Defect Detection
• Instantly identifies deviations in shape, size, or surface quality.

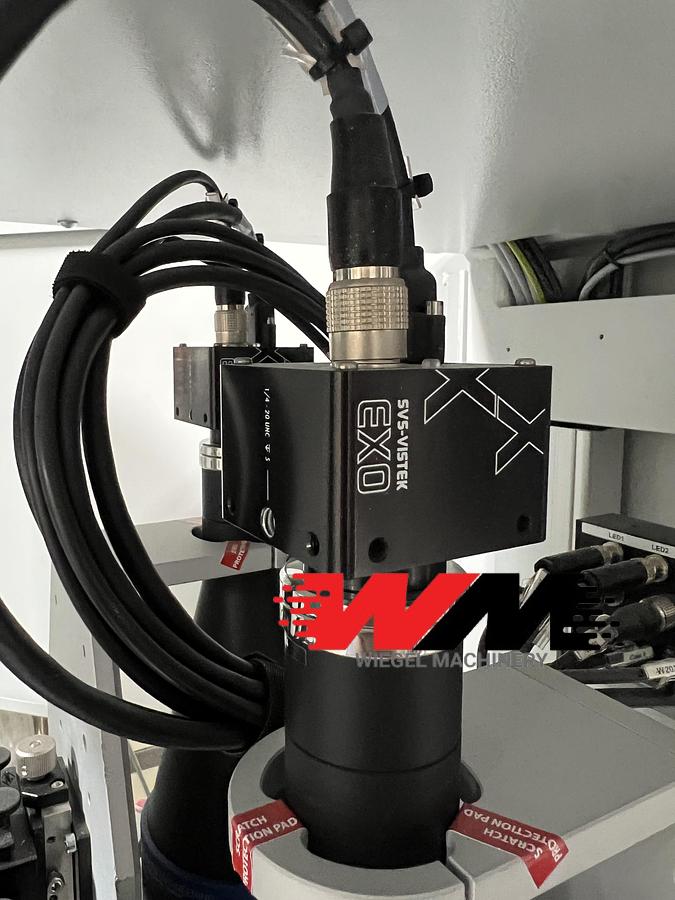

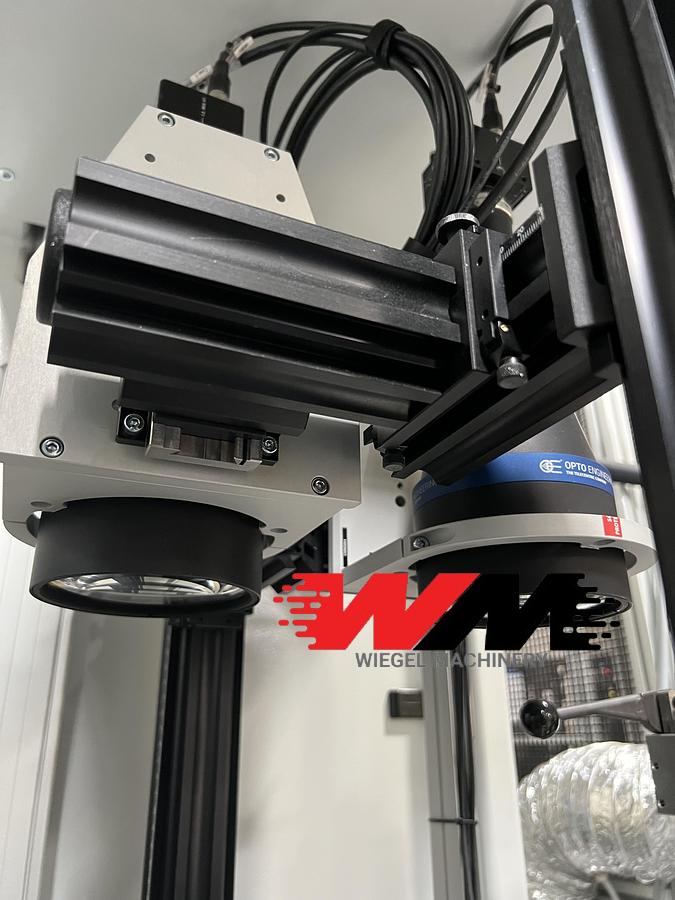

• High-Speed Cameras & Optimized Lighting
• Capture precise images of fast-moving strips for accurate analysis.
• Automated Press Control & Sorting
• Faulty parts are detected early, allowing for immediate press stoppage and removal — reducing scrap and downtime.
• Advanced Software Algorithms
• Analyze geometry and contours with high precision, ensuring only defect-free parts proceed.

Key Benefits

• Guaranteed 100% Inspection Coverage
• Continuous monitoring of every part — no sample-based quality checks needed.
• Reduced Waste & Rework
• Early error detection minimizes defective batches and material loss.
• Accelerated Production Release
• Immediate feedback enables faster go/no-go decisions.
• Improved Process Stability
• Detects process deviations in real time to prevent quality drift.
• Centralized Quality Data
• Comprehensive logging for traceability and analysis.
• Low Maintenance & Easy Integration
• Designed for ease of use and quick integration into existing production environments.

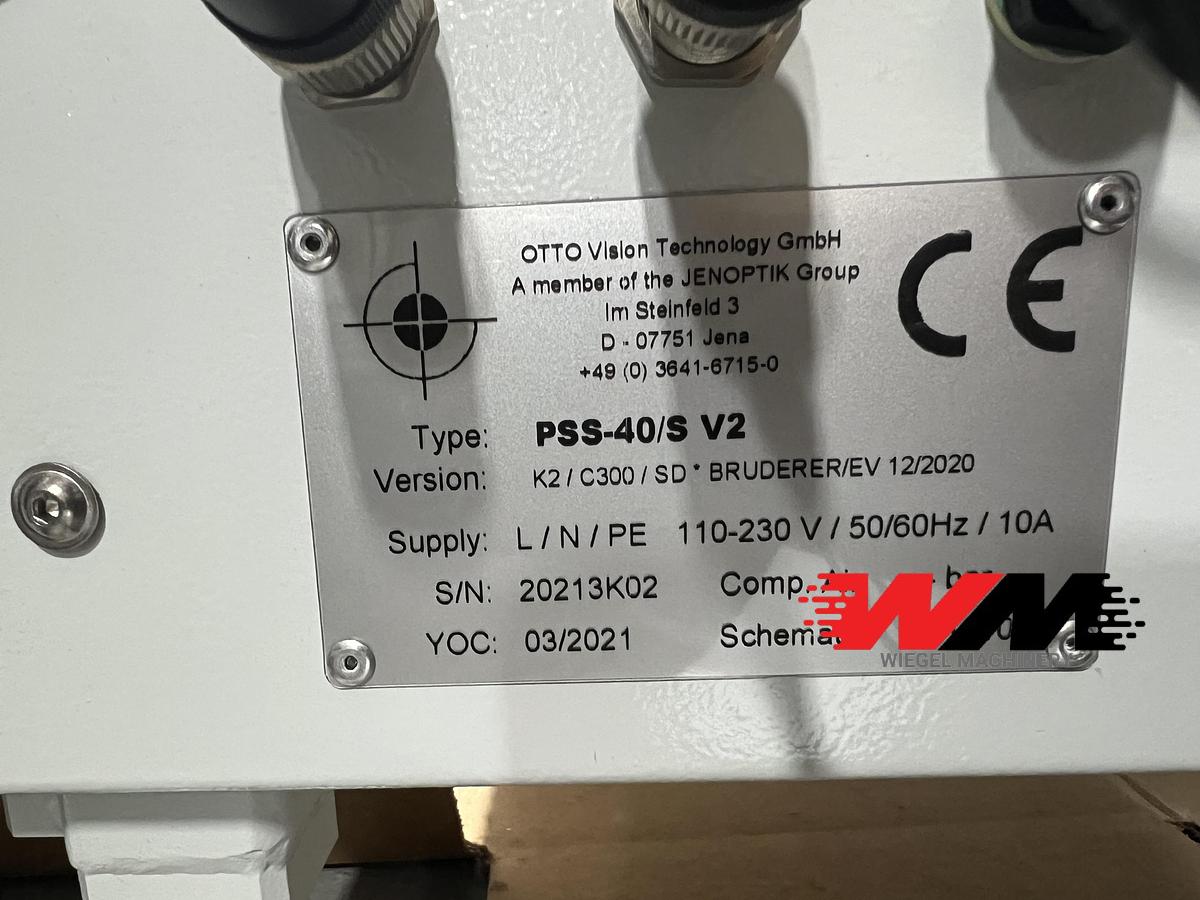

Model: PSS-40/S Working space: for up to 3 camera modules Width: 550 mm Depth: 900 mm Height: < 2,100 mm Power supply: 230 V/50 Hz/10 A (110 V/60 Hz/10 A) Pressure air: 6 – 8 bar (only necessary with optional cutting unit) Compact and space saving design Runs normally with 2-3 cameras Removable plate can be exchanged to the front User panel is to be opened to the right (left)
