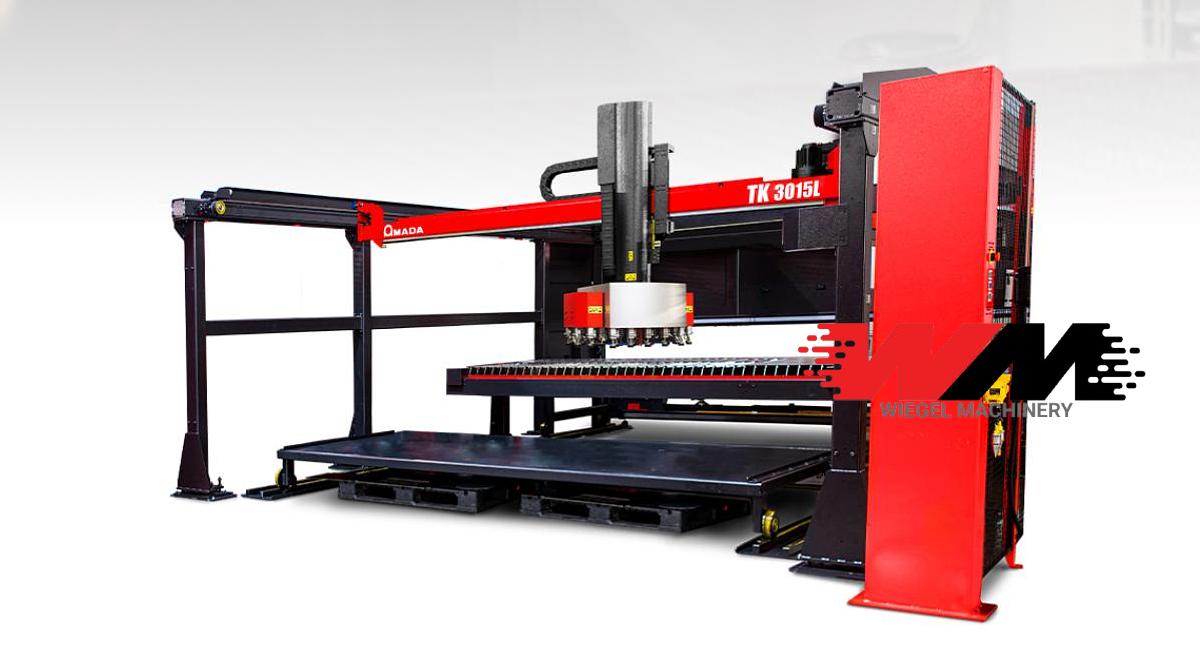

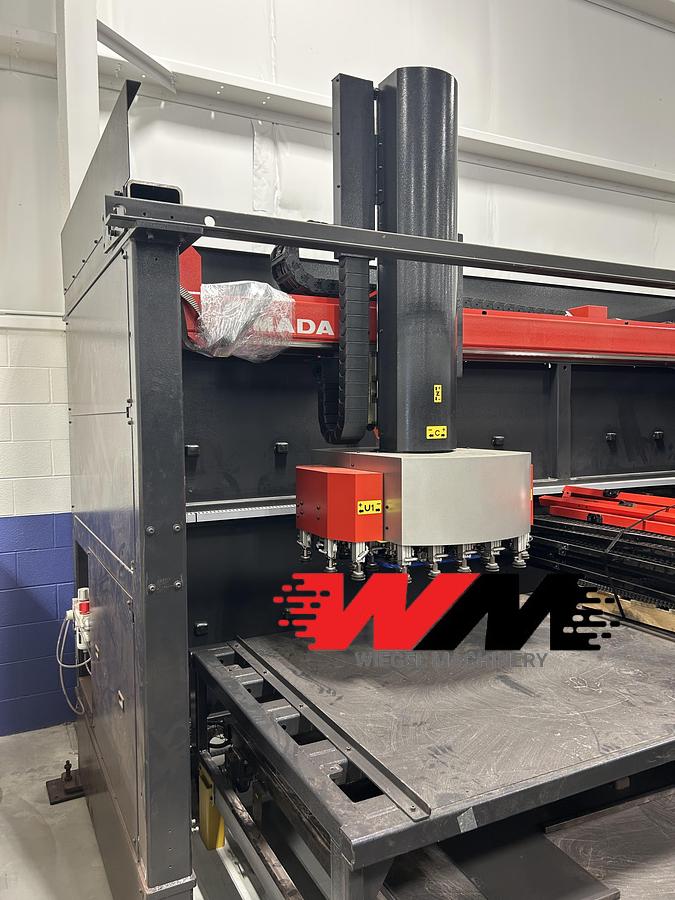

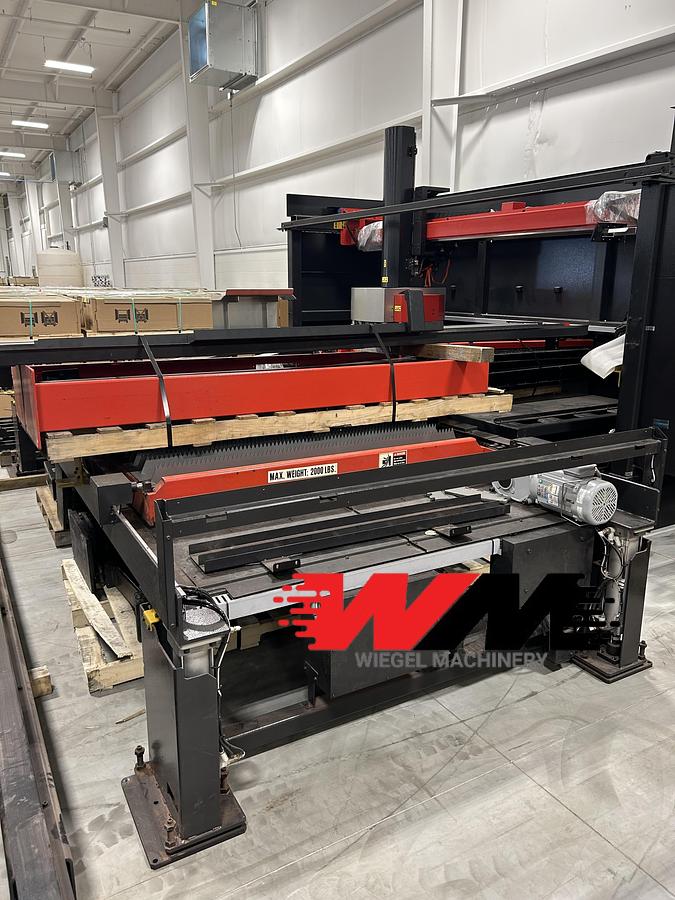

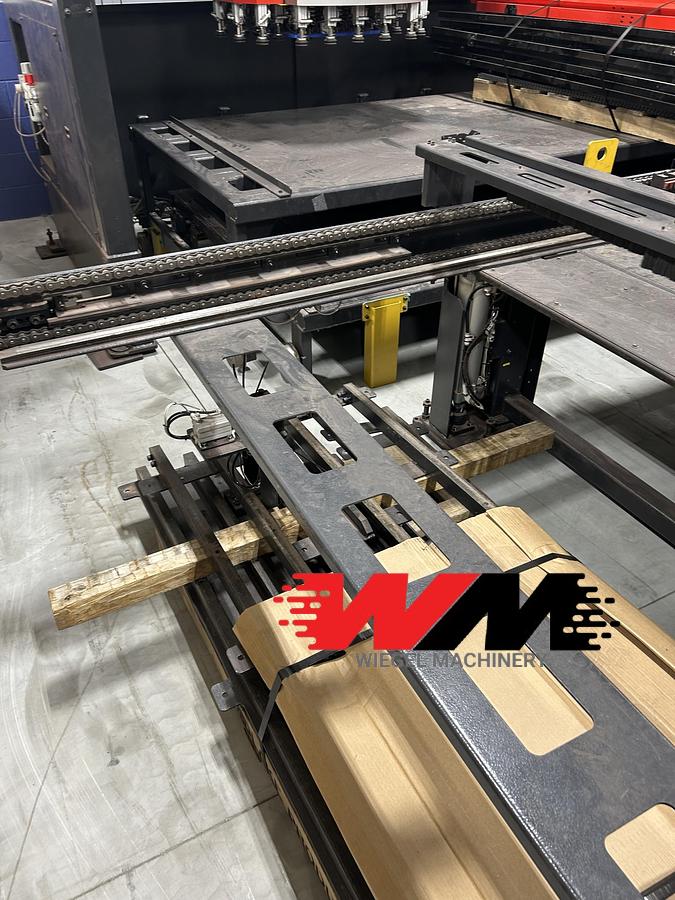

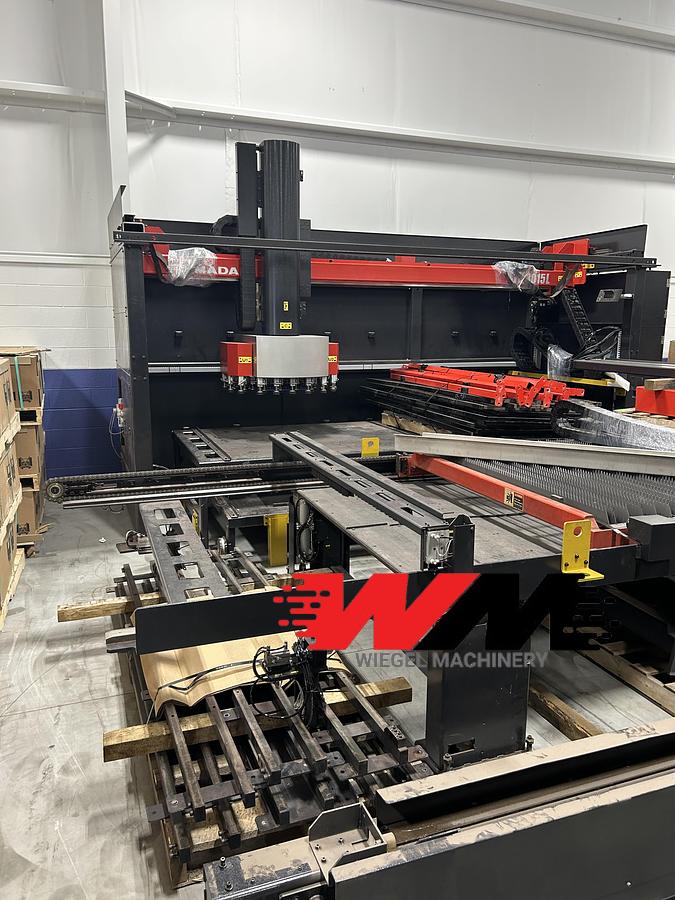

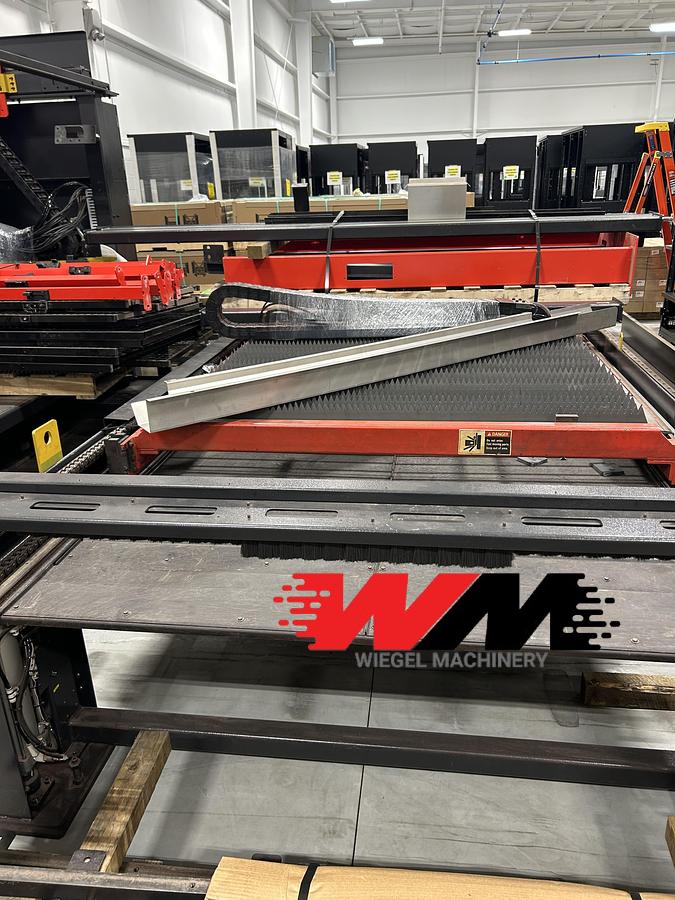

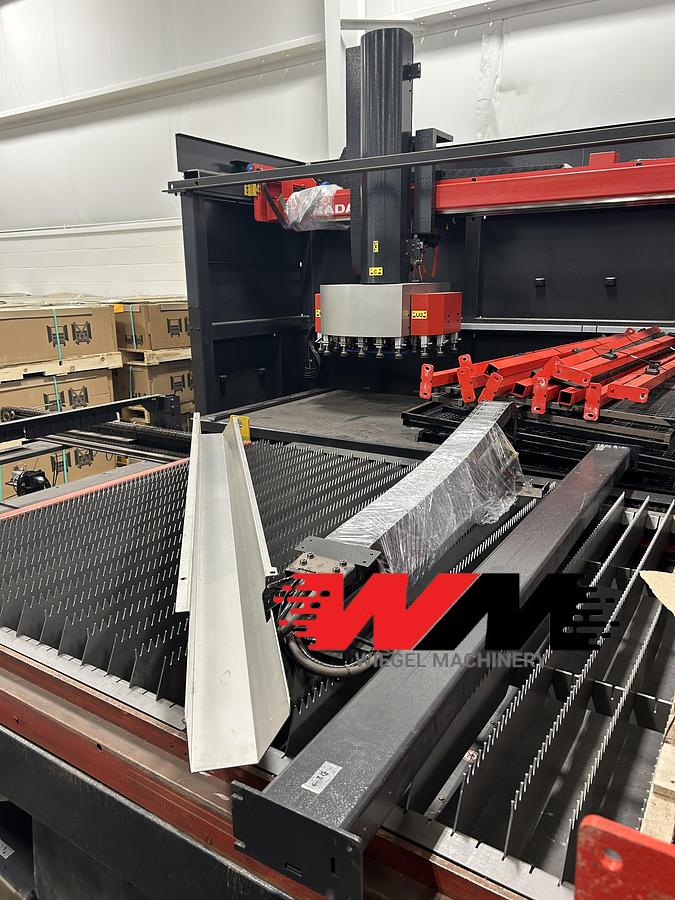

22’ Amada TK 3015L Parts Sorter

The TK 3015L from AMADA is a cutting-edge automated parts sorter designed to streamline the unloading and stacking of laser-cut parts. With high precision handling and minimal operator intervention, this system significantly reduces lead times, manual labor, and the potential for part surface damage.

Ideal for fabricators aiming to optimize throughput while maintaining part quality, the TK 3015L enhances overall productivity in high-volume laser processing environments.

Style: Gantry

Software: VPSS 3I Blank and Dr. ABE Blank

Number of Suction Pads: 81

Magnet Option: Yes

Approx. Part Removal Time (sec./part) 10 - 15 sec.

Pickup Area: (X,Y) 120" x 60" (3050 mm)

Max. Part Weight: 331 lbs. (150 kg)

Thickness Range: 0.039" x ).5" (1 mm x 12 mm)

Max. Part Size: 98" x 49" (2500 mm x 1250 mm)

Mins Part Size: >0.066" (1.7mm) 7"x 2" (175 mm x 50 mm) ***

Max. Stack Height: 10.2" (260 mm) height per shelf (up to 3 shelves)

Stack Directly to Conveyor: No

Picks Up Multiple Parts: No

Integrate with AGV: No

Unload Capabilities: 2 unload pallets and floor. Front side access only

Automation Compatibility: AMS3015CL & ASFH3015

For additional information, please visit the manufactures website: https://www.amada.com/america/tk3015l-psr3015

Key Benefits:

• Automated unloading and stacking of laser-cut parts
• Minimizes manual labor and operator fatigue
• Reduces risk of part scratching or damage
• Improves lead time and workflow efficiency
• Seamlessly integrates with AMADA laser cutting systems

Amada video: https://www.youtube.com/watch?v=9eIAEK-z3UQ
