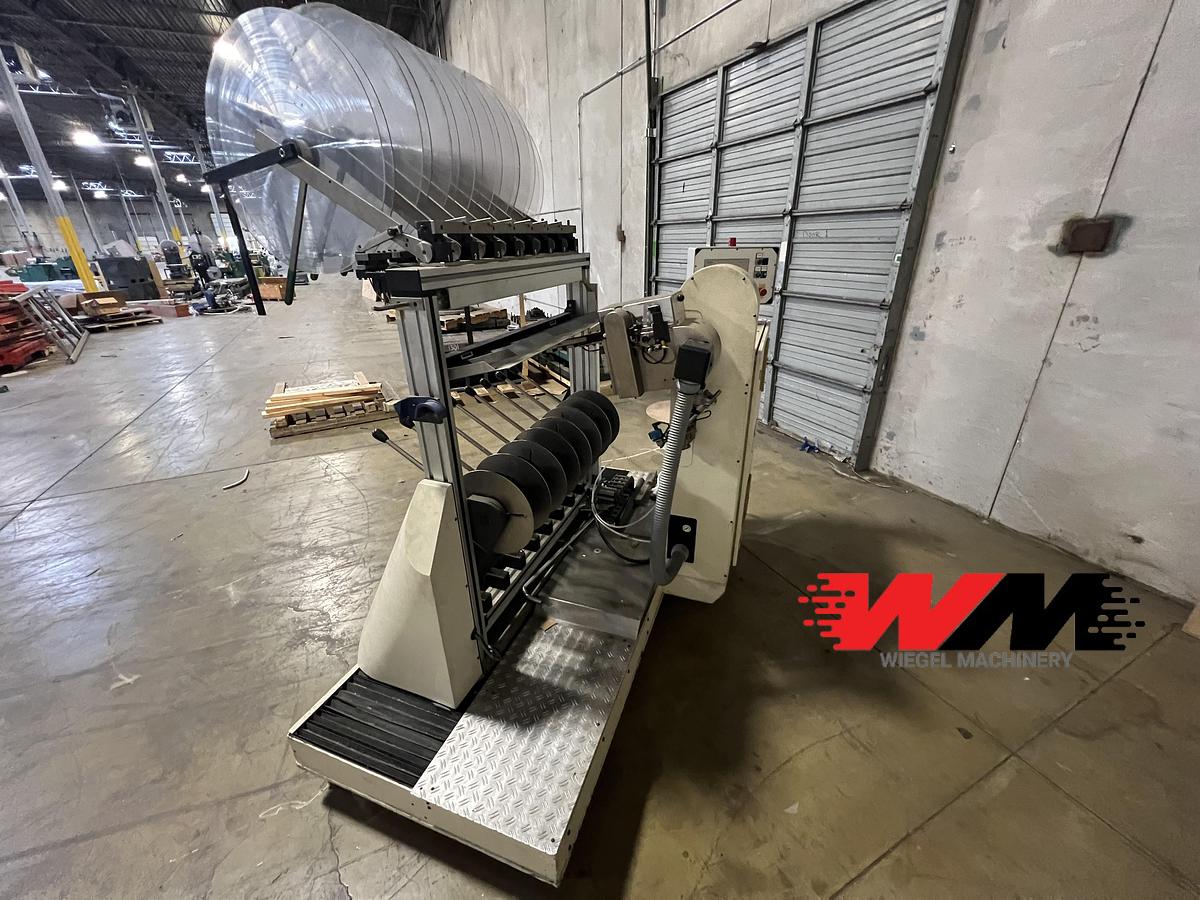

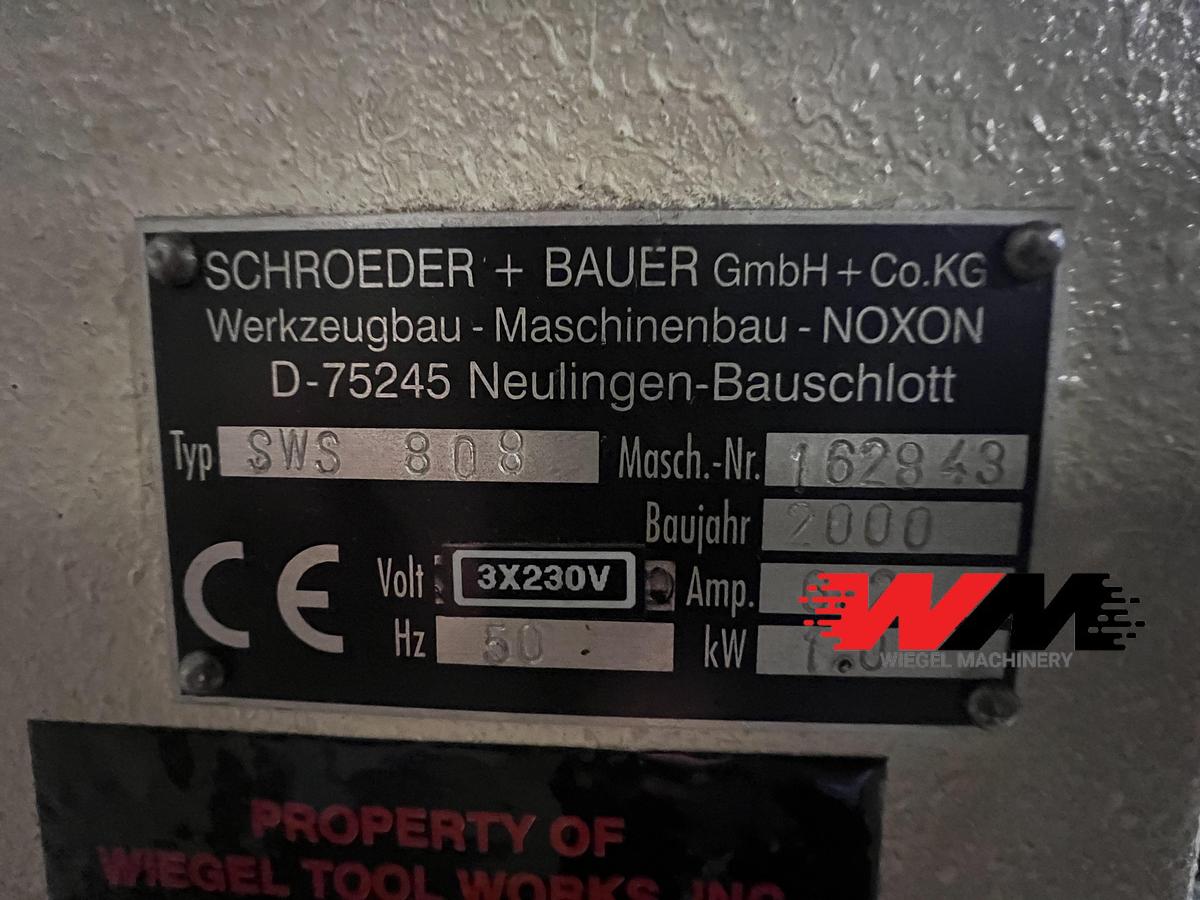

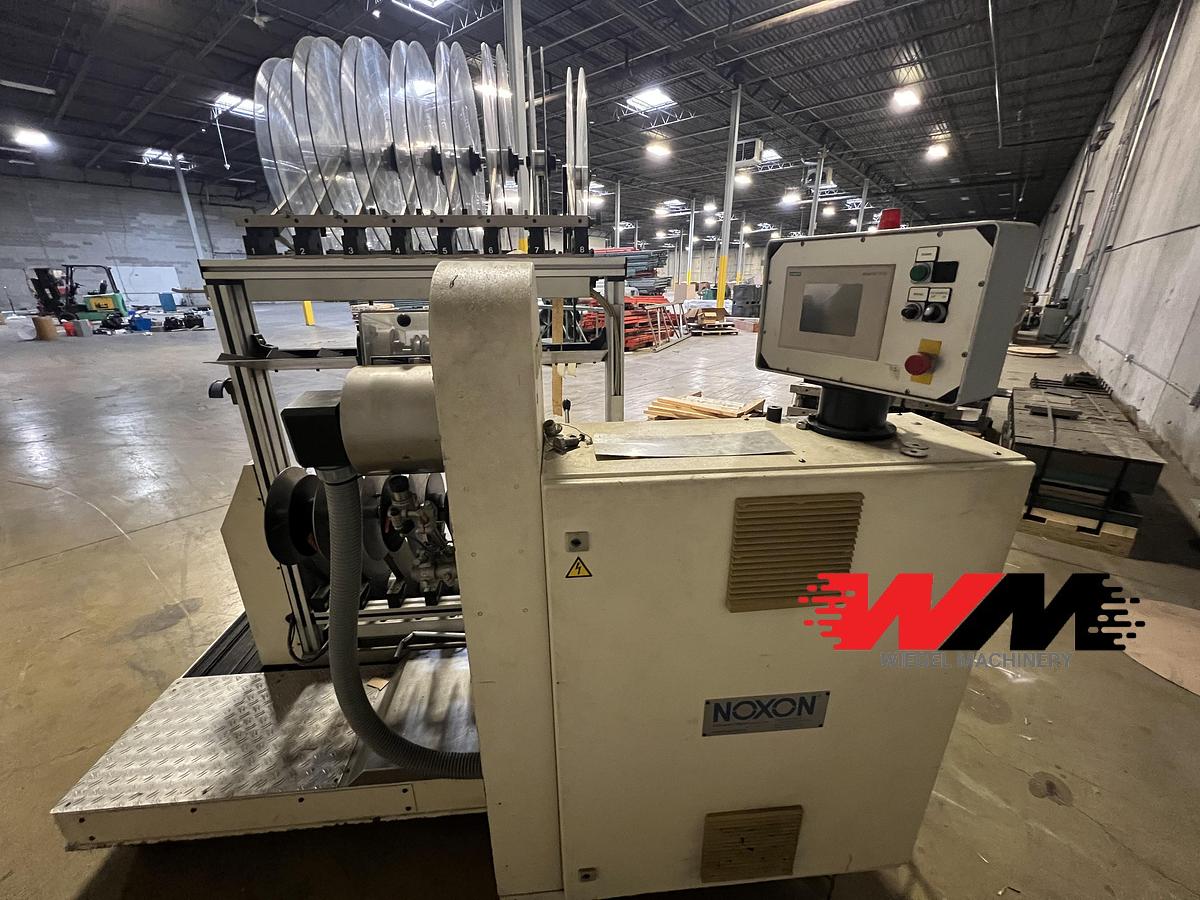

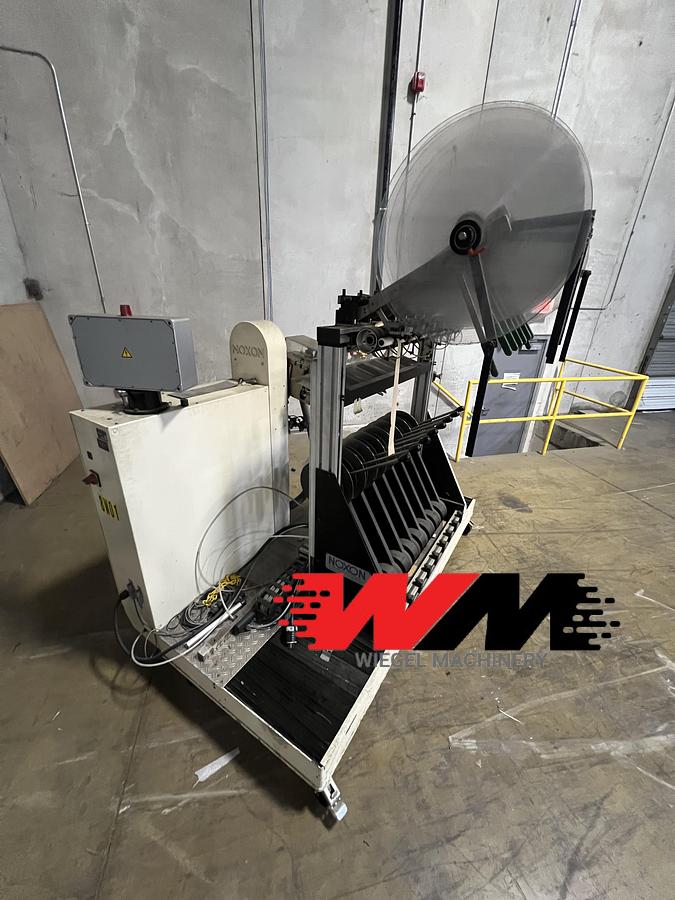

00' Noxon (Schroeder + Bauer) Model SWS 808 (8 reel) Automatic Track Winder

8 out Automatic Track Winder

Ideal for high volume reel to reel stamping applications

Reel & Strip Specifications

• Number of Reels: 8
• Maximum Reel Diameter: 1000 mm
• Maximum Strip Width: 50 mm
• Maximum Coil Weight: 30 kg
• Maximum Line Speed: 25 meters per minute (with strip accumulator)

Automatic Track Winder – Key Features

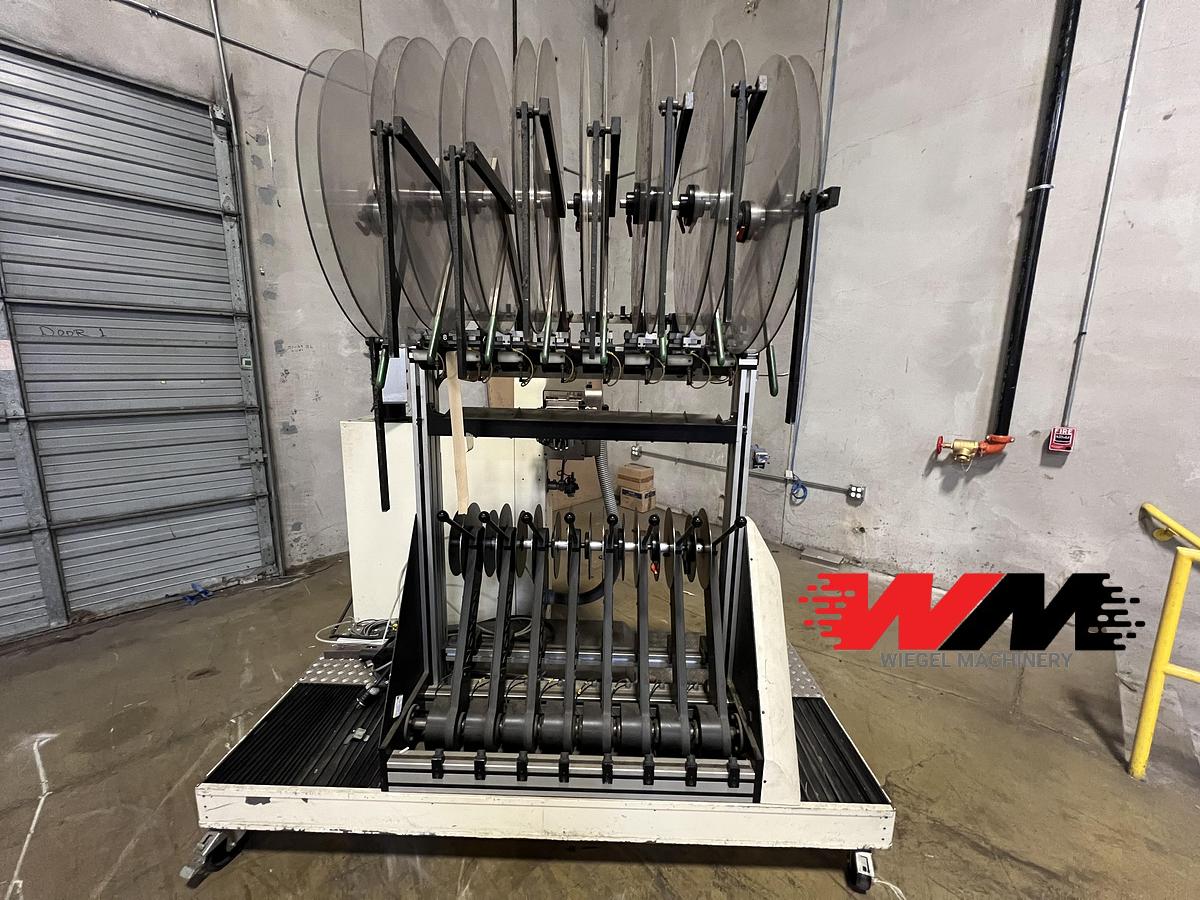

1. Reel Configuration

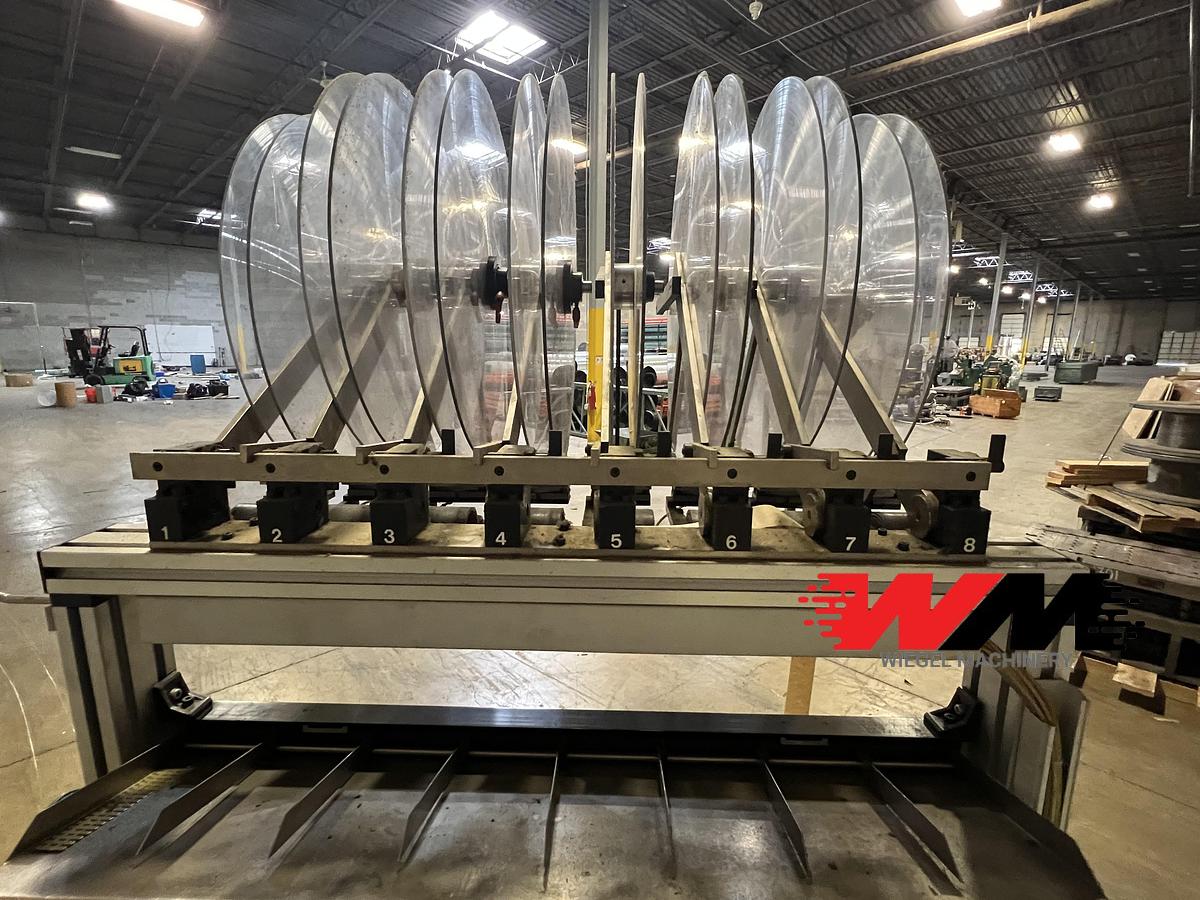

• Supports 8 Reels
• Single Reels are Exchangeable
• → Can be swapped or replaced at any position, enhancing flexibility.

2. Reel Handling

• Swivel Mechanism
• → Simplifies reel changeover (material or paper reels).
• Exact Reel Positioning
• → Uses a fixed traverse path for precise alignment during winding.

3. Speed and Tension Control

• Contact-Free Speed Control
• → Non-contact sensors maintain consistent speed—likely using optical or ultrasonic sensing.
• Electromagnetic Paper Brake
• → Ensures tension control during winding by modulating resistance electronically.

4. Automation & Control

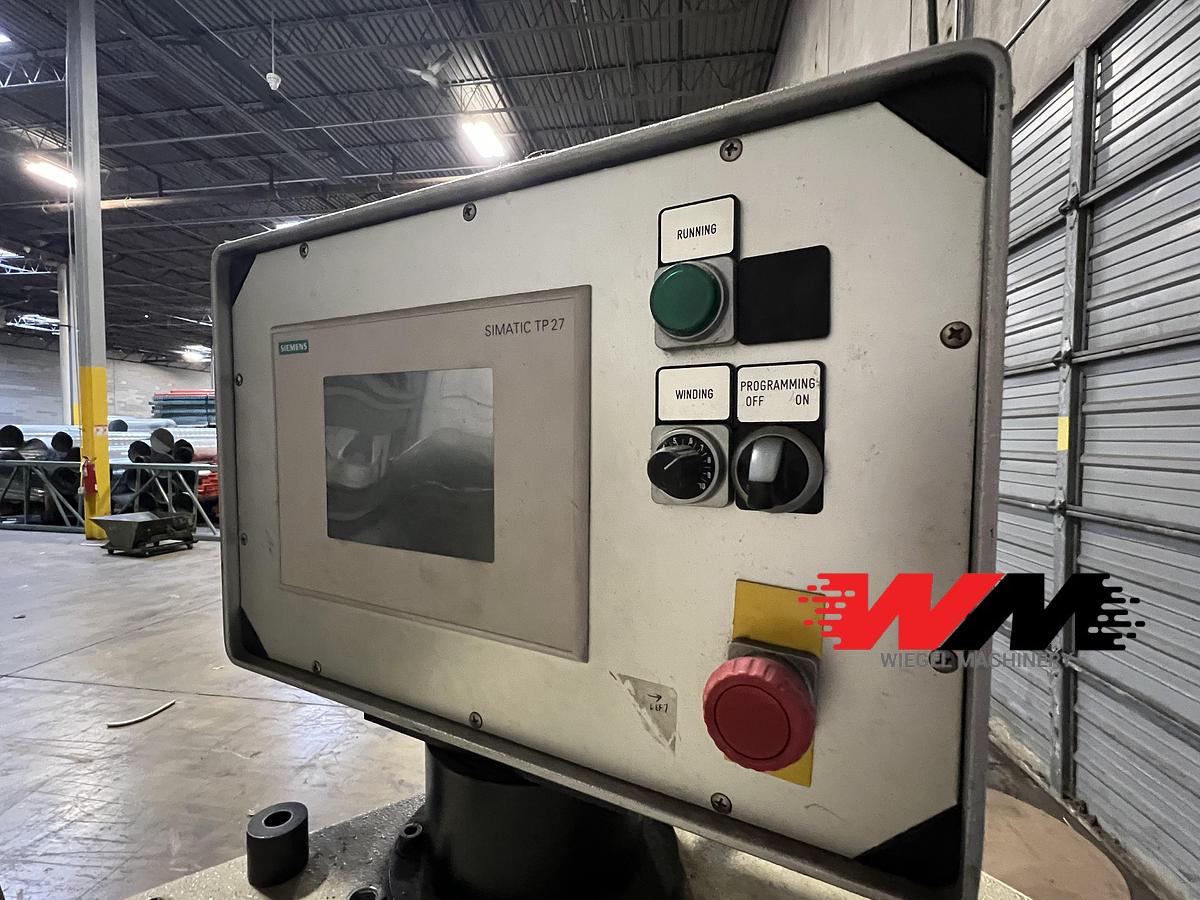

• Touch Screen Display
• → For machine operation and parameter input (likely PLC/HMI controlled).
• Programmable Parts Counter
• → Tracks production quantity, enables automatic sample ejection when needed.
• Movable Threading-In Head
• → Automatically adjusts material guide position according to reel winding diameter—minimizing manual setup.

This winder is production ready!
